Product Description
100~800kW CHP Biogas Generator for Biogas Plant
Biogas is primarily methane (CH4) and carbon dioxide (CO2) and may have small amounts of hydrogen sulphide (H2S), moisture and siloxanes. The gases methane, hydrogen, and carbon monoxide (CO) can be combusted or oxidized with oxygen. This energy release allows biogas to be used as a fuel; it can be used for any heating purpose, such as cooking. It can also be used in a gas engine to convert the energy in the gas into electricity and heat. | Typical composition of biogas |
| Compound | Formula | % |
| Methane | CH4 | 50-75 |
| Carbon dioxide | CO2 | 25-50 |
| Nitrogen | N2 | 0-10 |
| Hydrogen | H2 | 0-1 |
| Hydrogen sulfide | H2S | 0.1 -0.5 |
| Oxygen | O2 | 0-0.5 |
Requirements & Remark
Before 1m from gas intake pressure regulator, the requirements are as follows:
Gas temperature ≤40 ºC
Gas pressure 2.5~10 kpa
Pressure change rate ≤ 1k Pa/min
Methane content ≥ 50%
Moisture content ≤ 40 g/Nm3, no free water
Impurity size ≤ 5μm, impurity content≤30mg/Nm3
Sulfur content ≤ 200mg/Nm³
NH3 content ≤ 20mg/Nm³
Operation condition:
Temperature: -20 ºC~+40 ºC
Sea level: < 1000 m
Relative humidity: < 90 %

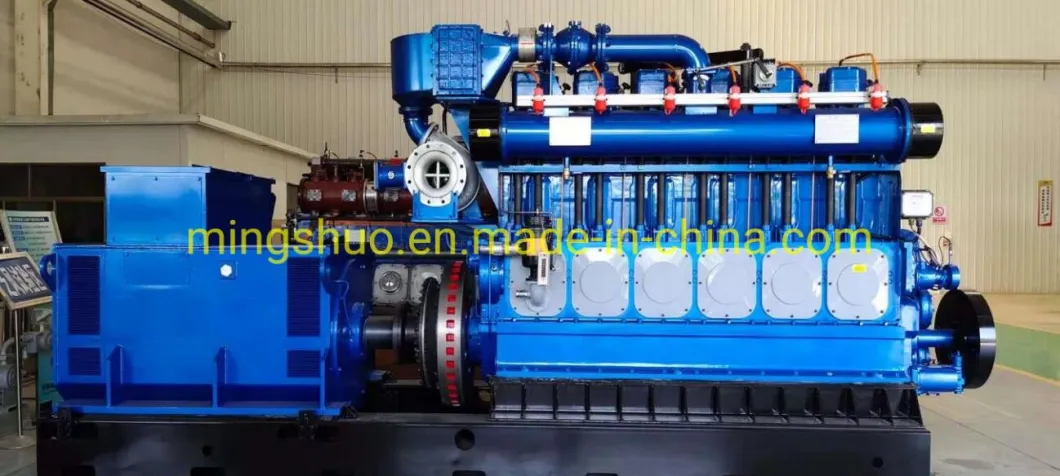

Technical Parameters of 800kW Biogas Genset| 800kW Biogas Generator Set Specifications |
| Gas Generator | Rated Power | 800KW |
| Rated Voltage | 400V |
| Rated Frequency | 50/ 60Hz |
| Rated Speed | 600 rpm |
| Dimension (LXWXH) | 5800mmX1600mmX3100mm |
| Weight(kg) | 22000 |
| Gas Engine | Engine Type | In-line, Four Stroke, Electronic Ignition,Trubocharged |
| Rated Speed | 600 rpm |
| Cylinder No. | 6 in line |
| Bore | 300mm |
| Start Method | Compressed air |
| Crankshaft Rotation Direction | Clockwise (From Flywheel) |
| Cooling Method | Open Water Cooling |
| Aspiration Type | Trubocharged |
| Gas Mixer Formation | Pre-Mix |
| Gas Intake Pressure | ≥2.5kPa |
| Gas Intake Temprature | ≤40ºC |
| Lubricating oil Consumption (g/Kw·h) | ≤0.8 |
| Max -exhaust Temprature | 650ºC |
Brushless
Alternator | Alternator Model | 800KW |
| Rated Voltage | 400V |
| Rated Speed | 600 rpm |
| Phase NO. | Three phase |
| Power Factor | 0.8 (LAG) |
| Excitation Type | Brushless |
| Insulation Class | H |
| Protection Class | IP23 |
