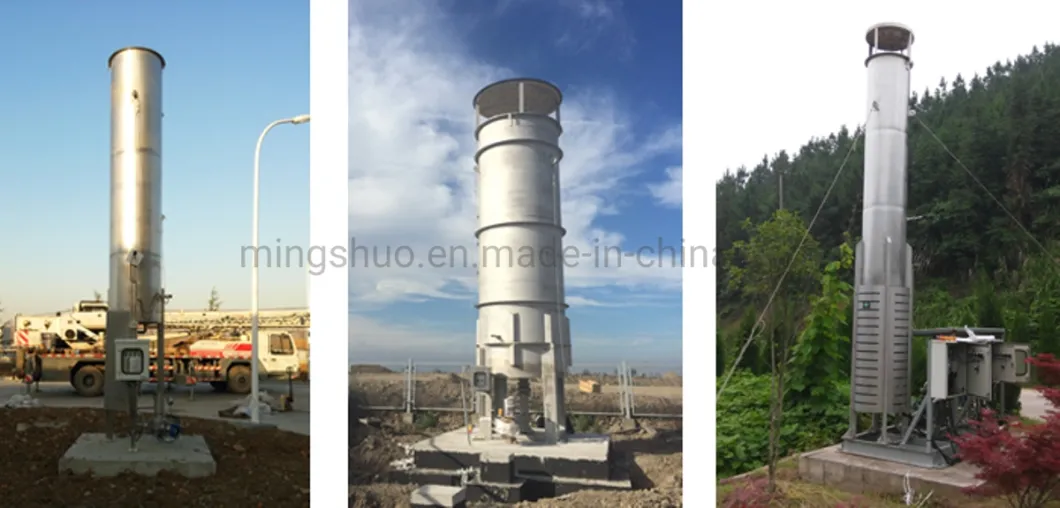

Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
  • Biogas External Combustion Torch for Biogas Project Gas Burning
Unit Price: 1000~8000 USD
Min. Order: 1 Piece/Pieces
Basic Info
Product Description

Biogas External Combustion Torch for Biogas Project Gas Burning
Basic Information

Capacity: 0-1000 m3/h
Material: Stainless steel
Calorific value of biogas combustion: 5-6.8kWh/Nm³
CH4 percentage: 50%-75%
Water content: ≤ 10 mg/Nm³
H2S content: <200 ppm
Mechanical impurities: ≤ 150 μm
Design pressure: 10-60 mbar (low pressure), or 60-120mbar (high pressre)

Divided into internal combustion and external combustion types

SpecificationsHeight (mm)Diameter (mm)Flow rate (Nm³/h)Weight (kg)
503840397.920-80150
1004100447.580-150180
2004340636.5150-250220
3004840700250-350280
4005340796350-450320
5005590796450-550390
Note: It can be customized according to your request, please contact me for further discussion.

Gas torch is a kind of environmental protection device for combustible gas. Its function is to burn the extra collected gas, eliminate the odor, eliminate the hidden dangers of safety, reduce greenhouse gas emissions. With its safety and easy operation design, the application is quite wide. It can be used for coal gas, natural gas, industrial biogas, paper mill biogas, sugar mills biogas, municipal sludge anaerobic biogas,starch plant biogas, alcohol plant biogas, citric acid plant biogas, coal chemical, landfill gas, farm methane and so on.
Biogas External Combustion Torch for Biogas Project Gas Burning
The monitoring system of the torch automatic ignition is composed of four parts:
1) the source of the ignition trigger signal
2) the PLC control unit
3) the high energy electronic ignition device
4) the ignition device

Biogas External Combustion Torch for Biogas Project Gas Burning
Management System Certification: ISO9001:2008, ISO14001:2004, OHSAS18001:2007

Company Introduction:
Shandong Mingshuo New Energy Technology Co., Ltd. Specializes in biogas project. The company is the production base of medium and large biogas equipments in China, the member of China Biogas Association, the member of China Association of Rural Energy Industry. The company is the recommended member of CCTV Website Enterprise Channel and China Import and Export Commodity Website, the most complete and excellent biogas equipments manufacturers in China. Mingshuo is a professional company integrating the scientific research, technological design, production and debugging service. The company specializes in the production of desulfurizer, desulfurization equipments and biogas equipments. Such as, Mingshuo MTZ biogas dedicated desulfurizer, MT ferric oxide desulfurizer, 889 Wet Desulfurization catalysts, water treatment agent, MS biogas dedicated desulfurization tanks, thioniers, biogas dedicated gas-water separators, assembled tanks, gas holders, positive-negative pressure protectors, biogas dedicated flame arresters, biogas boilers, deironing magnetic separation equipments, etc.
Biogas External Combustion Torch for Biogas Project Gas Burning
Biogas External Combustion Torch for Biogas Project Gas Burning
